Auto-crop multi-films feature to save more time and cost down more for your budget
Introduced by Microtek, the professional design of Medi-3200 can easily transfer X-Ray film into digital format, simply using customized templates and the Smart-Scan feature together, the Medi-3200 can easily carry out the auto-crop function to scan multi-films at a time. In addition, it captures details in bright and dark areas at a high optical resolution up to 3200 dpi, 4.2 Dmax, and 16-bit grayscale.
Therefore, it provides the medical professionals a smart and easy way to digitize and observe the X-Ray films. Furthermore, the digitized X-Ray films can be easily read and utilized in the MiPAX gateway software to be integrated with PACS/RIS system.
4.2 Dmax, 3200 dpi optical resolution (7.9 um spot size, 63 lp/mm) Excellent image quality with very fine details Provides customized templates to scan two films at a time Smart-Scan to auto-crop multi-films scan at a time Supports DICOM 3.0 and telemedicine with MiPAX SFDA certified for X-Ray Films Easy to operate, clean, and maintain Offers excellent image quality, performance, and secure e-medical records
Superior scans with 3200 dpi resolution and 4.2 Dmax
The Medi-3200 delivers impressive image quality, versatility and productivity features with the default 800 dpi, up to 3200 dpi optical resolution, 16-bit grayscale, 4.2 maximum optical density

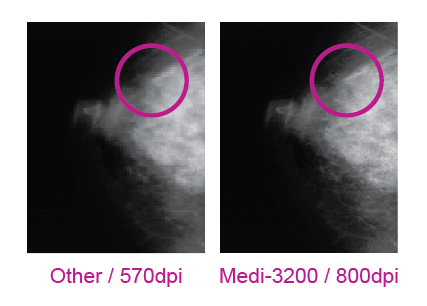

The higher resolution of Medi-3200 provides better image details. Medi-3200 provides 4.2 Dmax for a better performance in grayscale.
Frame Sizes for films:24cm x 30cm ; 18cm x 24cm
Various film templates
Medi-3200 provides two kinds of special designed templates and allows medical
professionals to scan multi-films at the same time.
Make multi-films scanning easily at a time
Templates and Smart-Scan make auto-crop simply to scan multi-films at a time.

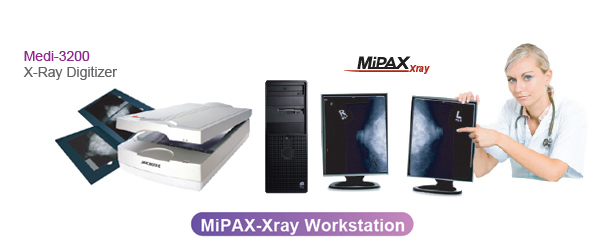

Supports DICOM 3.0 and telemedicine with MiPAX
NO.
Item
Details
01
Product Name
Medi-3200
03
Scanner Type
X-Ray films, Flatbed digitizer
04
Image Sensor Type
CCD
05
Resolution
Optical: 3200 dpi (7.9 um spot size, 63 lp/mm) Hardware: Up to 3200 x 6400 dpi Default: 800 dpi
06
Light Source
CCFL
08
Scanning Area
Film Scan Area: 12" x 16"(305 x 407 mm) Reflective Scan Area: 12" x 17"(305 x 432 mm)
09
Scanning Speed
69 seconds @ 800 dpi, 24 x 18 cm
11
Dynamic Range
Transparency 0.15D~3.7 D
12
Bit Depth
8/12/16-bit grayscale
24
Connectivity
Hi-Speed USB (USB 2.0), FireWire
25
Drivers
TWAIN
27
Scanable Media Types
Transparent, Reflective
28
Supported File Types
TIF, BMP, JPG, PSD, PDF, GIF
29
Supported Film Types
X-Ray films
18 x 24 cm , 24 x 30 cm
32
Dimensions (L x W x H)
627.6 x 367.2 x 180.5 mm
33
Weight
35.49 lbs (16.1 kg)
36
Certifications
SFDA, BSMI, CB, CCC, CE, ETL, FCC, RoHS
39
Power Source
AC 100V ~ 240V, 47 ~ 63 Hz
40
Power Consumption
45 Watts
43
System Requirements PC
CD-ROM drive (for installing software) 2 GB RAM or more Pentium IV PC or higher with USB port Microsoft Windows XP/ Vista/ Windows 7/ 8
45
Inbox Contents
Digitizer unit Power adapter & power cord 2 Film holders High-Speed USB 2.0 cable CD(s) Manual(s)
46
Software Included
Microtek ScanWizard Medi Smart Adobe Acrobat Reader
PS : Product specifications described herein are subject to change without notice.
4.2 Dmax, 3200 dpi optical resolution (7.9 um spot size, 63 lp/mm)
The higher resolution of Medi-3200 provides better image details.
